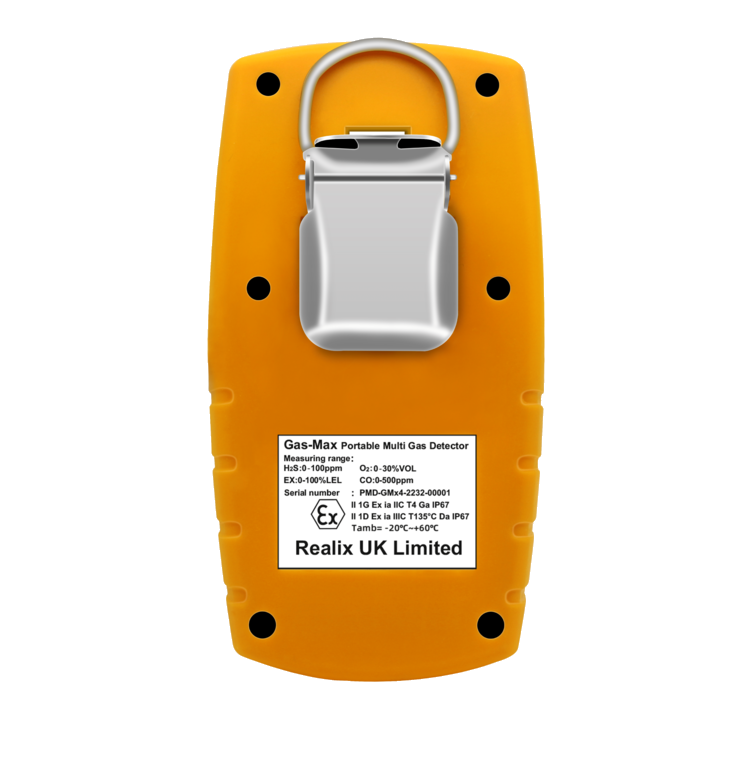

Portable Multi Gas Detector
Gas-Max
Zone 0/20 / IP67 Rated
A rugged portable multi gas detector with a compact and affordable design meant to withstand harsh environments. Developed with a User-Centered Design Process to make the device interface and handling highly intuitive. The bright color LCD display with loud alarms and vibrations is helpful in a noisy environment. The rugged anti-static exterior provides accurate reading even when exposed to temperatures ranging from -20°C to +60°C and humidity ~95% RH. The small and lightweight package can host upto 4 gas sensors. The standard 4 gas combination includes CO, H2S, Methane, and O2.
Zone
Zone 0/20
Sensors
Multi (4)
Protection
IP67
Battery
1300 mAh
Key Features
INTRINSICALLY SAFEExplosion Proof / ATEX Zone 0/20
ALARMSLight, Sound, Vibration
ULTRA-RUGGEDIP67
SENSORSHosts up to 4 sensors (CO, H2S, Methane, O2, etc.)
HUMIDITY10%-95% RH (no condensation)
BATTERY1300 mAh (Rechargable)
Sampling MethodDiffusion
DisplayTFT Color LCD Screen
Sensor TypeElectrochemical, Catalytic
IP ProtectionIP 67
Warranty2 Years
Battery1300 mAh
Response TimeT90 < 30S
Humidity Range10%-95% RH
Sensor RangeMethane (0-100%LEL), O2 (0-30%VOL), H2S (0-100 ppm), CO (0-500 ppm), etc.
